feat(plot3d): set_texture — wrap an image around a surface, with a WebGPU path

[CSSFrancis]

Wraps an image around a 3-D surface — globes, planets, star charts — with a WebGPU path for large meshes, plus the two 3-D rendering bugs the work uncovered.

The BrushWidget commit that was also on this branch is already on main via #47, so what is left here is the texture work, the celestial-globe gallery example, and a round of review fixes.

---

Plot3D.set_texture()

Each triangle is genuinely texture-mapped, so the picture follows the geometry as you orbit. The default mapping is parametric — image left edge to the grid's first column, top row to its first row — so an equirectangular image lands on a sphere built with longitude along the columns and latitude down the rows.

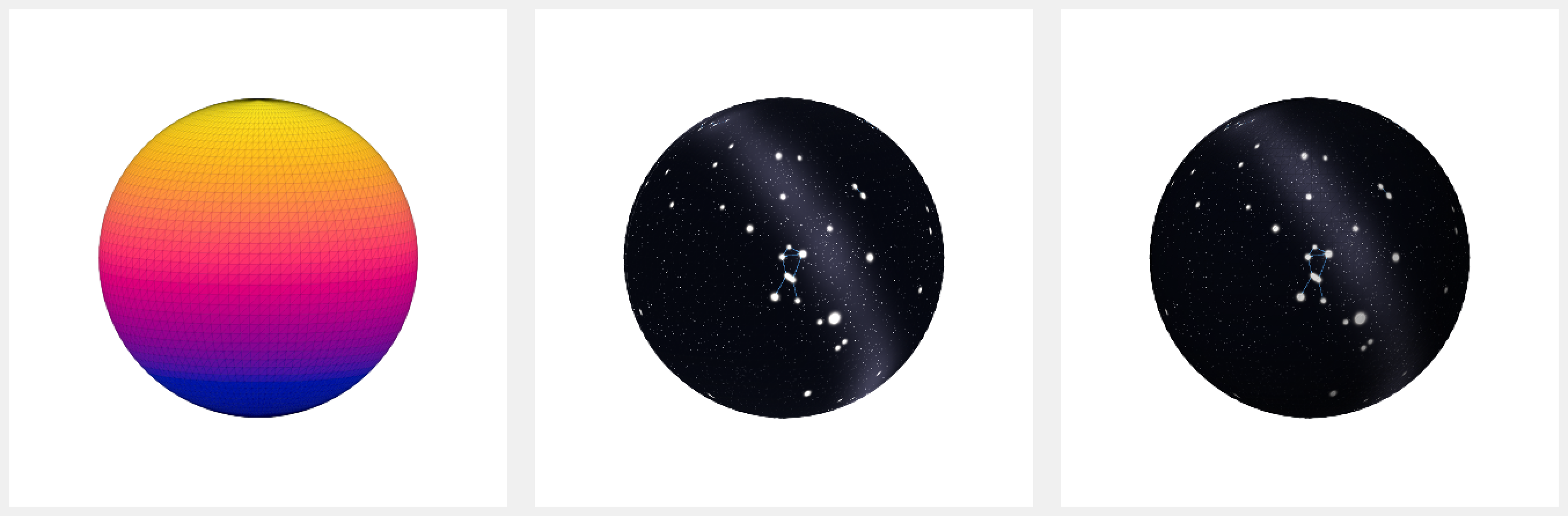

Left → right: the same sphere as a colormapped Z surface, with set_texture(sky), and with shade=True. Axes.plot_surface gained texture=, bounds= and gpu= to match.

Rendering goes through WebGPU above ~2k triangles (~9k triangles: 54 ms/frame on Canvas2D vs 0.4 ms on the GPU; 160k: 1.75 s vs 2.4 ms), falling back silently when WebGPU is unavailable. texture_alpha < 1 deliberately stays on Canvas2D — the overlapping-triangle composite that makes a translucent skin look right has no cheap depth-buffer equivalent.

Two things on the Canvas2D path are easy to get wrong and are documented at the call site: triangles are grown along their edges (a capped miter, not a centroid push) so neighbours overlap instead of leaving a mesh of background hairlines; and shade fills the clip black and draws the texture at globalAlpha = bright rather than darkening with a second translucent pass, which would double-darken every overlap.

set_axis_off() now also hides a 3-D panel's axis lines, labels and ticks — a textured globe reads badly with three dashed lines through it.

---

Bug: 3-D orbit drags went the wrong way

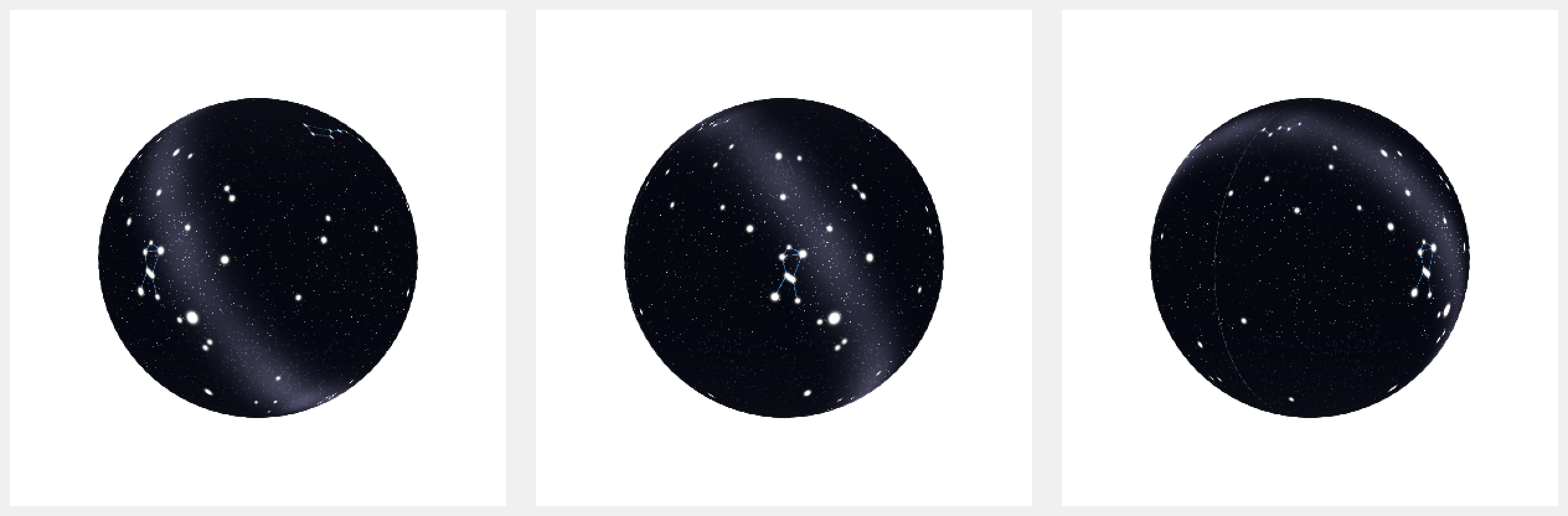

Centre: the starting view. Dragging right used to give the left frame — the sky sweeps away from the cursor, as if you had grabbed the far side of the sphere. It now gives the right frame.

Azimuth and elevation position the camera, so adding the drag delta swept the surface the opposite way. Both signs are inverted, which lands exactly on matplotlib's mplot3d convention (dazim = -(dx/w)·180, delev = -(dy/h)·180 in y-up display coords).

This is filed as an api_change, a new towncrier type that leads the release notes. It is a fix, but what a reader upgrading needs to know is that every 3-D drag now goes the other way, and that is easy to miss under "Bug Fixes".

---

Bug: WebGPU depth was inverted, then out of range

Two separate defects in the same matrix row.

Sign. clip.z decreased with depth while every depth-tested pipeline compares with less against a 1.0 clear, so a GPU-rendered scatter3d cloud drew its far points on top of its near ones and a textured surface rendered inside-out. It went unnoticed because voxels — the only other GPU consumer at the time — disable depth writes entirely.

Range. norm() puts geometry in a box reaching [-1, 1] on its longest axis, so |r1·n| reaches √3 at a corner. At the scale factor of 0.35 that put clip.z at 1.089 for the default camera, outside the [0, 1] WebGPU keeps — and WebGPU has no depth clamp without depth-clip-control. The bound is 0.5/√3 = 0.2887; the constant is now 0.28, with depth24plus precision to spare.

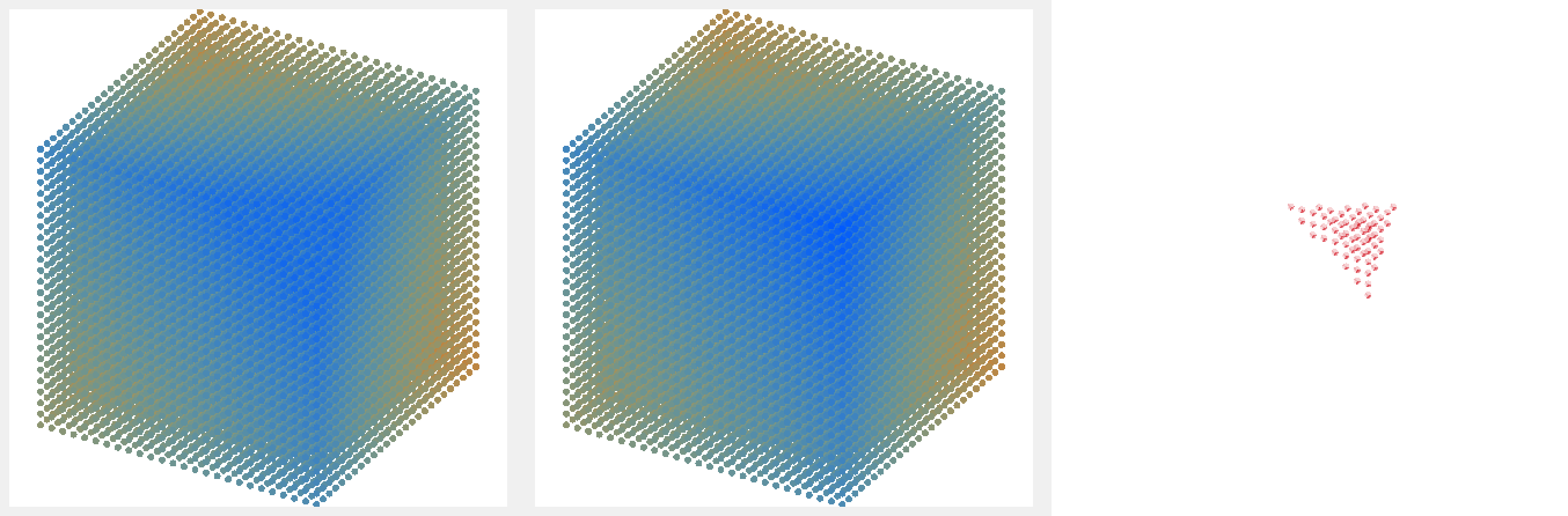

A 26³ lattice at the default camera. Left 0.35, centre 0.28, right the difference between them. 65 of 17,576 points — the two depth-extreme corners — were being dropped. They project near the centre of the hexagonal silhouette, which is why this is so easy to miss without the difference panel.

---

Review fixes

Found reviewing the branch before opening this PR.

set_data() silently discarded flip_v. Rebuilding an auto UV mapping passed flip_v=False unconditionally, so a surface textured with flip_v=True turned upside-down on its first data update — exactly what a streaming globe hits.

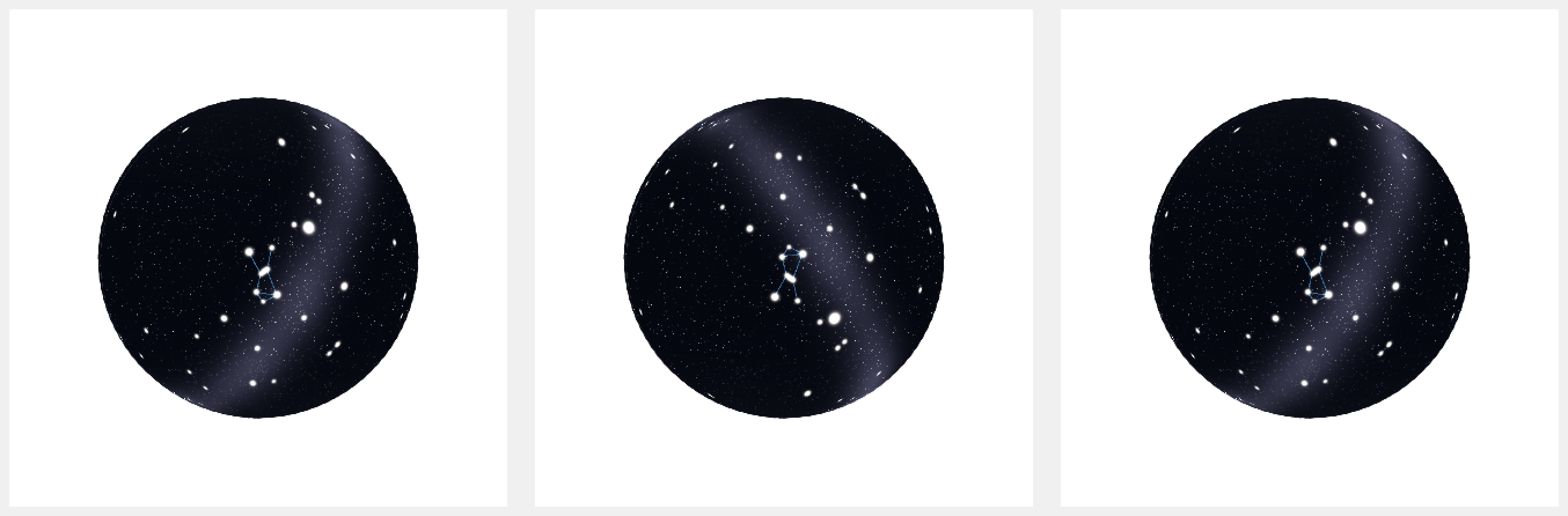

Left: straight after set_texture(sky, flip_v=True). Centre: after set_data(), before the fix. Right: after set_data(), fixed. Left and right are pixel-identical (max channel delta 0); left vs centre differs by 250.

pointer_up resolved its widget by index. _brushCommit resolves by ID because a model echo can replace p.state mid-drag; the emit on the next line did not, and would ship the wrong widget's dict in precisely that case.

A brush claimed Shift-drags that started outside the image. _brushPaintAt drops out-of-image points, so a gesture begun in the axis margin took the drag and then painted nothing — a dead zone that also swallowed the pan.

set_texture(alpha=) was unvalidated, unlike BrushWidget, which raises outside [0, 1].

Files that were never committed. test_interactive_examples.py already listed plot_star_globe_explorer.py, so a clean checkout failed that smoke test — the example only ever existed in a working tree. Same for 1,100 lines of tests and four changelog fragments. Scratch files (esm.diff, docs/_dummy/, a throwaway notebook) are gitignored rather than committed.

FIGURE_ESM.md anchors. Every anchor from draw3d down had drifted 390–590 lines when the texture commit inserted above them, and the 2-D function table was over 1,000 out. Both tables re-verified against all 9,285 lines; AGENTS.md now says to re-check them in the same commit that moves them.

---

Tests

+486 lines across four new files: the encode path, UV mapping and validation, set_data rebuild semantics, geometry-channel transport, Canvas2D render (including a seam check), the WebGPU activation matrix, depth ordering, orbit direction, and the star-globe example's linking maths.

Full suite green locally — 2,058 passed, 58 skipped, including the WebGPU tests against a real adapter.

Notes for the reviewer

• Plot3D.set_title() stores the title but the renderer has no 3-D title draw site, so it is a silent no-op. Pre-existing and left alone, but it means the gallery example's set_title does nothing.
• Screenshots above are hosted on the orphan branch assets/pr-3d-surface-textures, which carries no code history. Delete it once this is merged.
