Add a Hitboxes mod with per-entity toggles and colors

[dsnsgithub]

Adds a Hitboxes module to the Mods tab so collision boxes can be shown without F3+B, with independent visibility and color for each entity group.

Settings

• Master enable (plus an unbound Toggle Hitboxes keybind)
• Line width, look vector, eye-height line, and invisible entities
• Per-type Show + Color for:
  • Players
  • Self
  • Arrows
  • Projectiles (pearls, snowballs, eggs, potions, fireballs, fishing bobbers)
  • Items
  • Hostile mobs
  • Passive mobs
  • Other (TNT, XP orbs, armor stands, vehicles, …)

Vanilla F3+B hitboxes are left alone when the module is off.

Usage

Open the client menu with Right Shift, enable Hitboxes under Mods, then toggle types and pick colors.



[dsnsgithub]

Fixed: the mod crashed the game on startup

The Hitboxes module never ran — the client died before the main menu, so nothing in this PR could work.

EntityRenderDispatcherMixin targeted Entity.isInvisible with field-target syntax for a method target:

target = "Lnet/minecraft/entity/Entity;isInvisible:()Z"   // note the colon

That colon is how javap prints a constant-pool entry, but it is not what Mixin's @At accepts. Mixin rejected it, EntityRenderDispatcher failed to transform, and the whole client went down:

InvalidMemberDescriptorException: Invalid name: isInvisible:
Failed validating @At("INVOKE").target "Lnet/minecraft/entity/Entity;isInvisible:()Z"
Mixin apply for mod dolphinclient failed ... FAILED during APPLY

Fix is dropping the colon (466a72b). The colon is still correct on the renderHitboxes FIELD target on the line above — that one was always fine.

CI never surfaced this because the build failed at checkLicenseMain before :1.8.9:compileJava ever ran. That license failure is fixed in b15247f.

Verified by actually running it

Booted the 1.8.9 client (Xvfb + Mesa llvmpipe): no mixin errors, module loads, config renders, hitboxes draw.

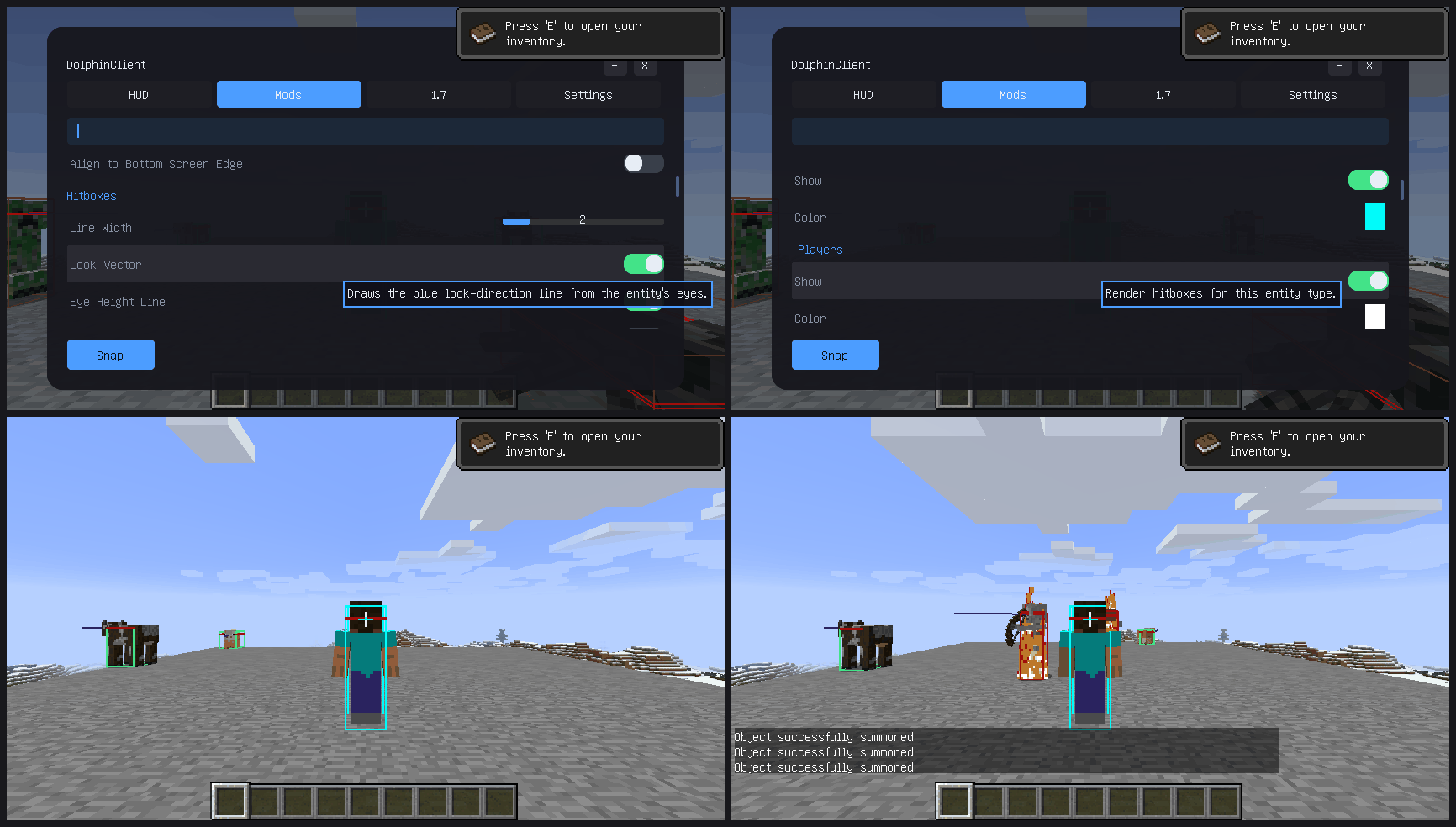

Top row — the config section under Mods → Rendering → Hitboxes: line width, look vector, eye-height line, invisible entities, then the per-type Show + Colour groups (Self cyan, Players white).

Bottom row — hitboxes rendering in world. Sampling the framebuffer confirms the per-type colours are actually distinct and correctly assigned:

Group	Colour	Pixels found
Self	#00FFFF cyan	868
Passive mobs (cow, pig)	#55FF55 green	271
Hostile mobs (spider, creeper)	#AA0000 dark red	551
Items (dropped porkchop/beef)	#FFFF55 yellow	confirmed separately
Eye-height line	red	359
Look vector	blue	200

Classification is correct including the case that first looked wrong to me: animals that died on a fall were drawn yellow because they had become dropped-item entities, which is the intended ITEMS grouping.

./gradlew build passes locally — license checks, compile, tests, remapJar.

Two notes, neither blocking

1. I could not find the master enable toggle anywhere in the config UI. Options named enabled are not rendered inline for categories nested under Rendering, so the module can only be switched on via the unbound Toggle Hitboxes keybind or by editing the config. This is not specific to this PR — Motion Blur, Menu Blur and Scrollable Tooltips use the identical category.add(enabled, …) + rendering.add(category) pattern and behave the same, so I left it alone. Worth binding a key by default if you want it reachable out of the box.
2. The PR description says the module lands "in the Mods tab"; it actually lands under Mods → Rendering, since the category is added to config().rendering.

The screenshot is committed at docs/hitboxes.png purely so it renders here — the API has no way to attach an image to a comment. Drop that commit before merge if you'd rather not carry screenshots in the repo.

---

Generated by Claude Code

[dsnsgithub]

The image link in my previous comment was wrong — I used an incorrect commit SHA, so it 404s. Correct one:

Top row — the config under Mods → Rendering → Hitboxes: line width, look vector, eye-height line, invisible entities, then the per-type Show + Colour groups (Self cyan, Players white).

Bottom row — hitboxes rendering in world after the mixin fix: cyan self box, green cow/pig, dark-red spider/creeper, red eye-height line, blue look vector.

Everything else in that comment stands.

---

Generated by Claude Code

[dsnsgithub]

Moved Hitboxes from Rendering to the HUD tab (707cee0)

This also fixes the missing master enable I flagged earlier — same root cause.

MenuCatalog filters out options named enabled from the option list and only re-surfaces them as a tile-level toggle. rendering has more than 12 children, so shouldPromote collapses it into a single "Rendering" tile and renders each child as an inline section — and sections don't get a toggle. Nested under Rendering, Hitboxes could only be switched on via the unbound keybind or by hand-editing the config.

Two changes:

• Hitboxes registers its category at the config root (config().addCategory) instead of config().rendering.
• MenuCatalog routes hitboxes to Tab.HUD, mirroring how general is routed to Tab.SETTINGS. shouldPromote now returns false for Tab.HUD, so the tile keeps its children as sections — without that, the eight per-entity groups would each become their own tile.

Note the HUD tab couldn't host it directly: it's built from HudManager.getEntries() plus nodesFrom(hudCategory, true), and that true skips subcategories, so a plain category added to hudCategory is silently dropped.

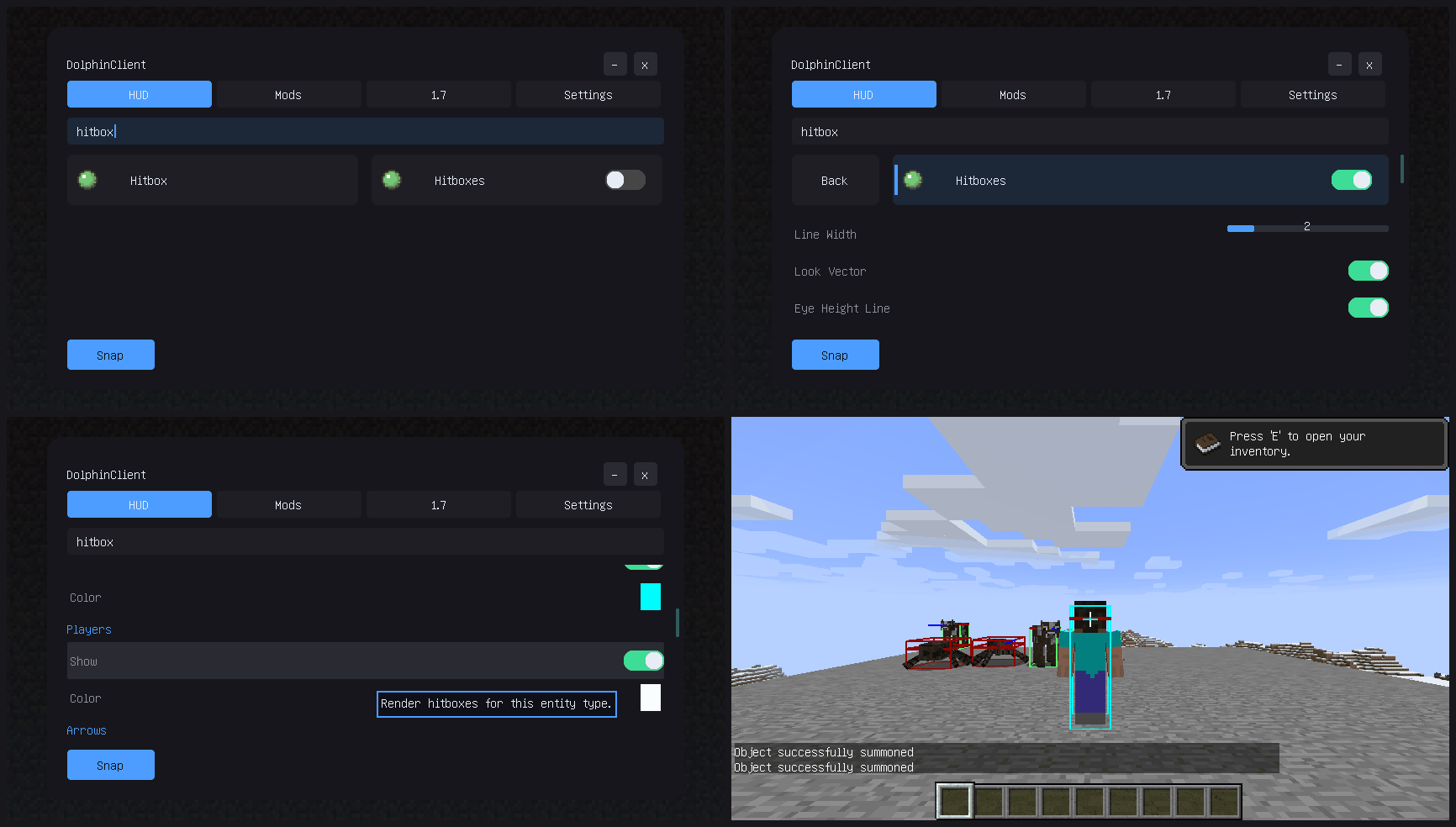

Verified on a real client run: Hitboxes is its own HUD tile with a working toggle, the per-type Show/Colour groups render inside it as sections, and enabling it purely through the UI (no config editing) draws the hitboxes — self cyan, passive green, hostile dark red, plus eye-height and look-vector lines. ./gradlew build passes.

⚠️ This moves saved options from rendering.hitboxes to a top-level hitboxes block, so any existing values reset to defaults.

The PR description still says the module lands "in the Mods tab" — that's now the HUD tab. I left the description alone rather than editing your text.

---

Generated by Claude Code
