Revert "feat(usage): show the cached subset beside every token total"

[lidge-jun]

Summary

Reverts #4421 (7b3c4e9800).

The reported defect was Devin-only and did not live in the display layer. The logs table has always rendered a token total with its cached value beneath it; Devin rows showed a bare total because the cloud-direct adapter decoded GetChatMessageResponse field 28 — response_dimension_groups, the rows the IDE draws — instead of field 7, ModelUsageStats. Cache read and cache write never reached the log row at all, so there was nothing for the renderer to show.

#4419 fixes that at the source, and that is the whole fix. Every other provider was already correct.

#4421 instead rewrote the Usage page columns, the dashboard 30-day tile and the CLI usage tables, which were behaving as intended. This revert restores them.

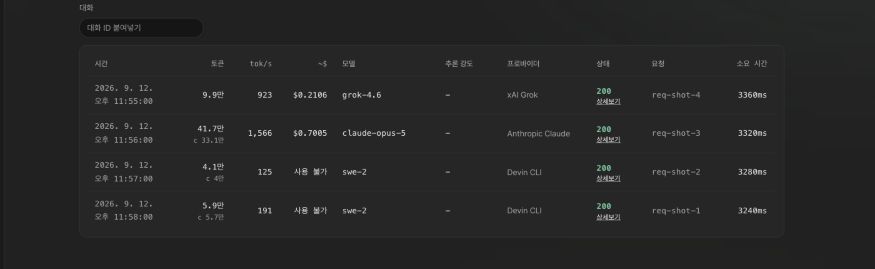

The screenshot is the point of the revert: the layout is exactly what it was before #4421, and the two Devin CLI rows now carry c 4만 and c 5.7만 — which they could not before #4419, and which no display change was ever needed to produce. Captured from a build of this branch on a throwaway proxy with its own port and OPENCODEX_HOME.

Verification

• bun x tsc --noEmit — clean.
• bun run lint:gui — clean.
• bun test tests/cli/cli-usage-report.test.ts tests/test-layout.test.ts tests/test-layout-tooling.test.ts — 51 pass, 0 fail; the layout guards confirm the removed test file is deregistered.
• Live render verified on the throwaway instance above.
• Full bun run test: NOT RUN locally by request; remote CI on this head is the evidence.

Checklist

• Scope stays focused and avoids unrelated cleanup.
• Docs or release notes were updated when needed.
• Security-sensitive changes were reviewed for secrets, auth, and unsafe defaults.

[github-actions]

✅ Deterministic PR hygiene checks passed.

[chatgpt-codex-connector]

Codex Review Summary

This comment shows the latest Codex review activity on this pull request.

Review	Status	Commit	Review trigger
📝 Code Review	✅ Completed 2026-09-12T15:46:22.051800Z	b97a72b	PR opened

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

• Open a pull request for review
• Mark a draft as ready
• Comment "@codex review" or "@codex security review".

Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings.

[github-actions]

✅ READY

• all PR quality gates passed.

Hygiene

✅ Deterministic PR hygiene checks passed.

[coderabbitai]

Important

Review skipped

Review was skipped due to path filters

⛔ Files ignored due to path filters (1)

• devlog/_plan/260912_devin_hardening/logs-devin-cached-restored.jpg is excluded by !**/*.jpg

CodeRabbit blocks several paths by default. You can override this behavior by explicitly including those paths in the path filters. For example, including **/dist/** will override the default block on the dist directory, by removing the pattern from both the lists.

⚙️ Run configuration

Configuration used: Path: .coderabbit.yaml

Review profile: ASSERTIVE

Plan: Advanced

Run ID: 4b699e1e-3d0a-4958-842d-a06ff084c940

You can disable this status message by setting the reviews.review_status to false in the CodeRabbit configuration file.

Use the checkbox below for a quick retry:

• 🔍 Trigger review

No actionable comments were generated in the recent review. 🎉

ℹ️ Recent review info

⚙️ Run configuration

Configuration used: Path: .coderabbit.yaml

Review profile: ASSERTIVE

Plan: Advanced

Run ID: 7386d0fb-3fd7-456a-a252-cad3c1422a17

📥 Commits

Reviewing files that changed from the base of the PR and between 1e28e62 and b97a72b.

⛔ Files ignored due to path filters (1)

• devlog/_plan/260912_devin_hardening/cached-token-companion.jpg is excluded by !**/*.jpg

📒 Files selected for processing (10)

• gui/src/format-tokens.ts
• gui/src/pages/Logs.tsx
• gui/src/pages/Usage.tsx
• gui/src/pages/dashboard-overview-head.tsx
• gui/src/pages/dashboard-shared.ts
• scripts/test-layout/layout.json
• src/cli/usage-report.ts
• tests/cli/cli-usage-report.test.ts
• tests/fixtures/test-layout-expected.json
• tests/gui/gui-format-tokens-cache.test.ts

💤 Files with no reviewable changes (5)

• gui/src/format-tokens.ts
• tests/gui/gui-format-tokens-cache.test.ts
• scripts/test-layout/layout.json
• tests/cli/cli-usage-report.test.ts
• tests/fixtures/test-layout-expected.json

Included review availability: Your plan provides up to 10 included reviews per hour; 1 remains after this review.

---

📝 Walkthrough

Walkthrough

The change removes cached-token formatting from GUI and CLI usage views. It removes related fields, helpers, imports, tests, and test-layout mappings. Usage displays now show aggregate token totals only.

Changes

Usage token display

Layer / File(s)	Summary
Remove cached-token contracts gui/src/format-tokens.ts, gui/src/pages/dashboard-shared.ts, gui/src/pages/Usage.tsx, src/cli/usage-report.ts	Removes cached-token formatter functions and cached-token fields from GUI and CLI usage data types.
Update GUI usage views gui/src/pages/Logs.tsx, gui/src/pages/Usage.tsx, gui/src/pages/dashboard-overview-head.tsx	Formats conversation, model, provider, and 30-day dashboard totals with plain total-token formatters.
Update CLI usage reports and tests src/cli/usage-report.ts, tests/cli/cli-usage-report.test.ts, tests/gui/gui-format-tokens-cache.test.ts, scripts/test-layout/layout.json, tests/fixtures/test-layout-expected.json	Removes cached-token suffix rendering and deletes the tests and layout mappings for that behavior.

Priority: ➖ Normal

Estimated code review effort: 2 (Simple) | ~15 minutes

Change: Bug fix

Suggested reviewers: invalid-email-address

Merge Risk: ⚪ Minimal · up to b97a7

The change removes cached-token details while preserving aggregate usage totals and their existing display paths. No actionable merge-blocking risk remains.

🚥 Pre-merge checks | ✅ 4 | ❌ 1

❌ Failed checks (1 warning)

Check name	Status	Explanation	Resolution
Docstring Coverage	⚠️ Warning	Docstring coverage is 0.00% which is insufficient. The required threshold is 80.00%. Docstring coverage is scoped to functions touched by this diff. Analyzed 7 functions across 5 files.	Write docstrings for the functions missing them to satisfy the coverage threshold.

✅ Passed checks (4 passed)

Check name	Status	Explanation
Linked Issues check	✅ Passed	Check skipped because no linked issues were found for this pull request.
Out of Scope Changes check	✅ Passed	Check skipped because no linked issues were found for this pull request.
Description Check	✅ Passed	Check skipped - CodeRabbit’s high-level summary is enabled.
Title check	✅ Passed	The title clearly identifies the primary change: reverting the feature that displayed cached-token subsets beside token totals. This matches the changes across the GUI, dashboard, CLI usage report, an…

✨ Finishing Touches 💡 2

📝 Generate docstrings 💡

• Create stacked PR
• Commit on current branch

🛠️ Fix failing CI checks 💡

• Create stacked PR
• Commit on current branch

🧪 Generate unit tests (beta)

• Create PR with unit tests
• Commit unit tests in branch codex/260912-revert-cached-companion

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands.}

[lidge-jun]

리뷰 · 우선순위 76 / 80

이 PR은 방금 dev에 들어간 #4421(7b3c4e9800, Usage/대시보드/CLI에 캐시 동반 표기)을 통째로 되돌립니다. 지금 HEAD는 1e28e6236(#4419)입니다. #4419가 Devin cloud-direct에서 GetChatMessageResponse 필드 28(IDE 표시용 response_dimension_groups) 대신 필드 7(ModelUsageStats)을 읽어 캐시 읽기/쓰기를 로그 행에 실어 주었습니다. 그래서 Devin 줄이 총량만 보이던 이유는 표시 레이어가 아니라 어댑터가 캐시 숫자를 안 넘긴 것이었습니다. 로그 표 본문 행은 예전부터 cacheSplit으로 c … / w …를 그려 왔고, 다른 프로바이더는 이미 맞게 동작했습니다. #4421은 그 구멍을 Usage 표·대시보드 30일 타일·CLI usage 표·Logs 대화 합계 배너까지 넓혀 고치려다, 이미 맞던 표면까지 다시 썼습니다. 이번 revert는 formatTokensWithCache / countWithCache와 그에 묶인 타입·테스트·plan 스크린샷을 제거하고, 표시를 #4419 이전(정확히는 #4421 직전) 형태로 되돌립니다. 원인 수정(#4419)과 증상 우회(#4421)가 둘 다 HEAD에 겹쳐 있는 상태를 정리하는 유지보수 PR입니다. types/config 분할과 무관하고 중복도 아닙니다.

gui/src/pages/Logs.tsx (대화 합계 배너) - revert 후 배너는 다시 formatTokens(total)만 씁니다. 바로 아래 로그 행은 여전히 c/w를 보여 주므로, 캐시가 많은 대화에서는 배너 숫자와 행 숫자가 다시 “다른 크기”처럼 읽힐 수 있습니다. Devin 결함과는 별개인 UX 차이입니다.

gui/src/pages/Usage.tsx · dashboard-overview-head.tsx · src/cli/usage-report.ts - 캐시 필드 타입과 동반 표기가 빠집니다. #4419 이후 Devin 데이터가 채워져도 Usage/CLI는 총량만 보입니다. “원래 의도한 표면”으로 되돌리는 것이면 맞고, 동반 표기를 제품 기능으로 남기고 싶다면 별 PR로 다시 설계해야 합니다.

devlog/_plan/260912_devin_hardening/cached-token-companion.jpg - plan 증거 이미지도 삭제됩니다. 계획 폴더 정리와 맞으면 문제 없습니다.

enforce-target (CI) - missing UI screenshot으로 품질 게이트가 실패했고, 봇이 draft로 붙잡아 둔 상태입니다. 내용은 GUI를 빼는 revert인데도 스크린샷 규칙이 걸렸습니다. 복원된 Usage/대시보드 한 장이나 면제 경로가 필요합니다.

tests/gui/gui-format-tokens-cache.test.ts · layout.json - 테스트와 layout 등록도 같이 빠져 정합합니다. 로컬로 지정한 usage-report·layout 테스트는 통과했다고 본문에 적혀 있고, 원격 test shard는 이 글을 쓰는 순간 아직 pending입니다.

메인테이너의 판단이 필요한 지점

• UI 스크린샷 게이트를 복원 화면 한 장으로 통과시킬지, revert라서 면제할지
• Logs 대화 배너만 캐시 동반을 다시 살리는 작은 후속을 둘지, Usage/CLI까지 제품 기능으로 다시 설계할지
• #4419만으로 Devin 증상을 닫은 것으로 문서/이슈를 마감할지

너의 추천
합치세요. #4419가 원인을 고친 뒤라 #4421은 잘못 겨냥한 표시 변경이고, 이 revert가 그 정답입니다. 스크린샷(또는 면제)만 처리하고 test shard·gates가 초록이면 바로 dev에 머지하는 쪽을 추천합니다. types/config 무효화·중복 close 대상이 아닙니다.

이 댓글은 grok-bot이 작성했습니다
